Tesla Coil





June 2021

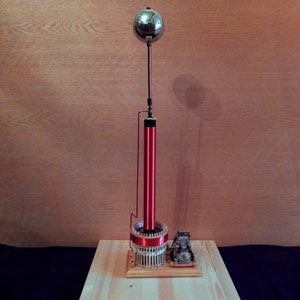

secondary and extra coil:  1440 μH
resonant frequency (with top load):  776 kHz
therefore, self capacitance = 29 pF



May 2021

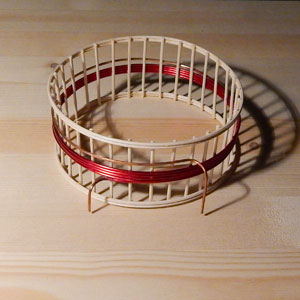

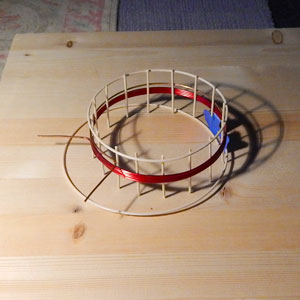

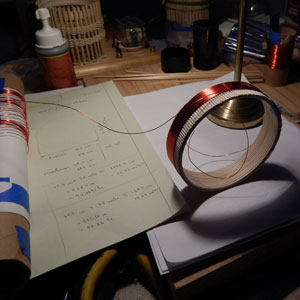

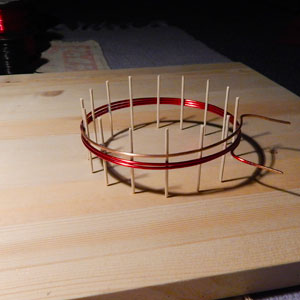

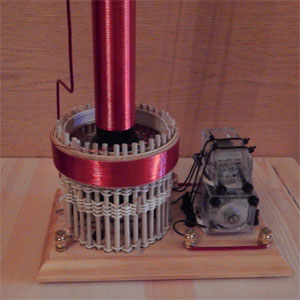

primary coil (test coil 2):
       14 AWG, 5 turns, 6.1 μH
diameter: 12.3 cm, length: 0.8 cm

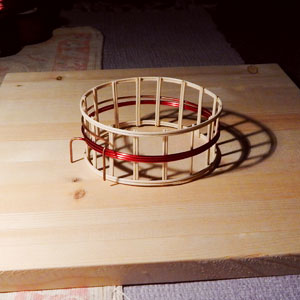

primary coil (test coil 1):
       12 AWG, 3 turns, 2.3 μH
diameter: 12.3 cm, length: 0.7 cm



April 2021

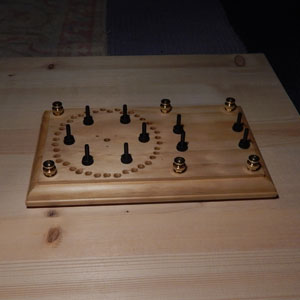

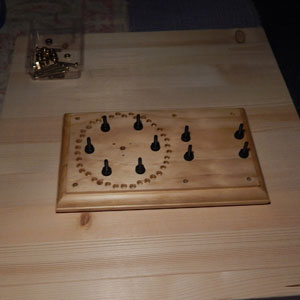

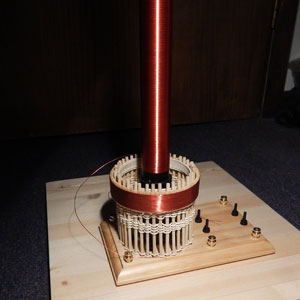

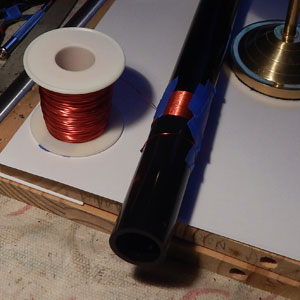

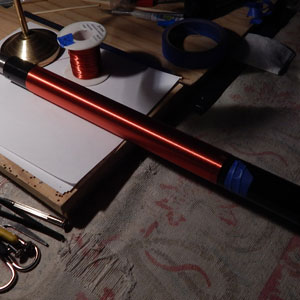

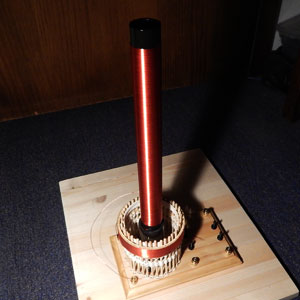

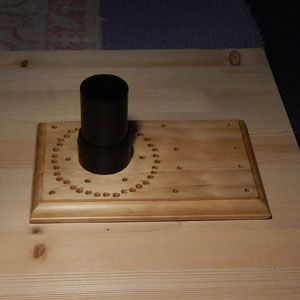

Extra coil: 24 AWG, 538 turns, 1103 μH
diameter: 3.3 cm, length: 29.9 cm



March 2021

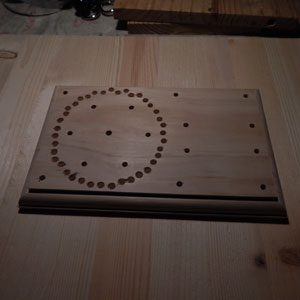

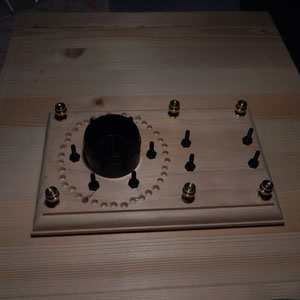

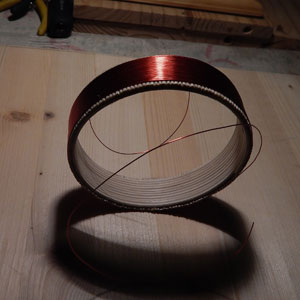

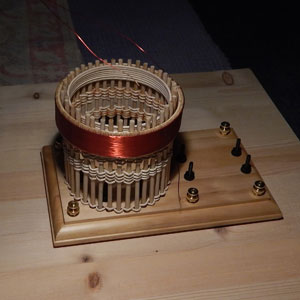

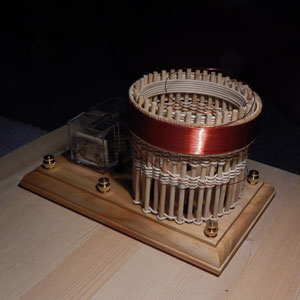

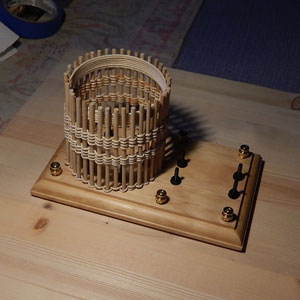

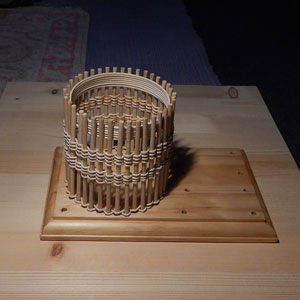

Secondary coil: 24 AWG, 39 turns, 257μH
diameter: 11.2 cm, length: 2.3 cm
